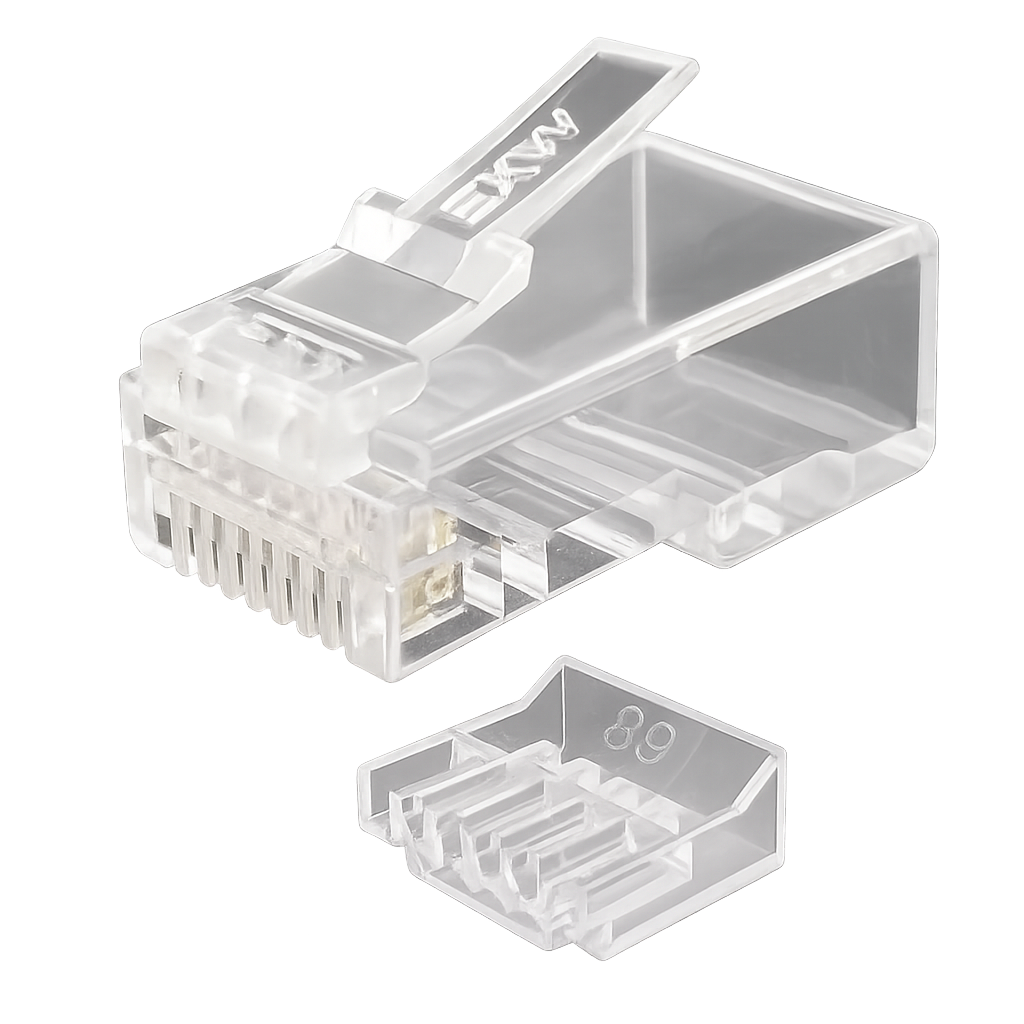

CAT6 RJ45 Connector with Load Bar
Product Description
Specifications
- RoHS compliant
- Meets FCC Part 68 & IEC 60603-7 reliability standards
- UL certified
- Patented 3-prong blade in China, USA, Germany, Japan, Taiwan
- ANSI/TIA-568.2-D compliant
Electrical Characteristics
- Max Voltage: 250V AC
- Max Current: 2A
- Dielectric Withstand: 500V AC
- Insulation Resistance: 100 MΩ
- Termination Resistance: ≤ 20 mΩ after testing
