SAT Splitter
Product Description
l 8220PV/DC : 8-way
l 8420PV/DC : 8-way

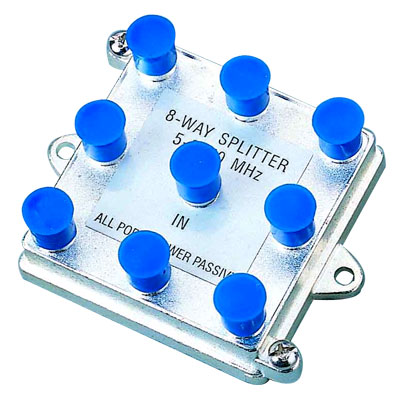

l 8220PV : 8-way Splitter – All ports Power Pass 5-2050MHz
l 8420PV : 8-way Splitter – All ports Power Pass 5-2450MHz
| Frequency (MHz) | Insertion Loss IN-OUT (Max. dB) | Return Loss IN (Min. dB) | Return Loss OUT (Min. dB) | Isolation OUT-OUT (Min. dB) |
| 5-47 | 12.5 | 10.0 | 8.0 | 20.0 |
| 47-1000 | 13.5 | 10.0 | 10.0 | 20.0 |
| 1000-2050 | 17.5 | 10.0 | 10.0 | 20.0 |
| 2050-2150 | 18.5 | 10.0 | 10.0 | 20.0 |
| 2150-2300 | 18.5 | 10.0 | 10.0 | 20.0 |
