SAT Splitter
Product Description
l 8214PV/DC : 6-way
l 8414PV/DC : 6-way

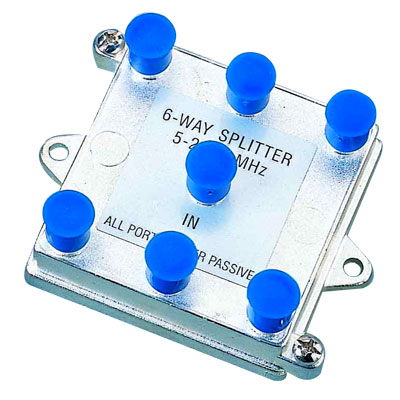

l 8214PV : 6-way Splitter – All ports Power Pass 5-2050MHz
l 8414PV : 6-way Splitter – All ports Power Pass 5-2450MHz
Frequency (MHz) | Insertion Loss IN-OUT (Max. dB) | Return Loss IN (Min. dB) | Return Loss OUT (Min. dB) | Isolation OUT-OUT (Min. dB) |
5-47 | 11.5 | 10.0 | 8.0 | 20.0 |
47-1000 | 12.5 | 10.0 | 10.0 | 20.0 |
1000-2050 | 16.5 | 10.0 | 10.0 | 20.0 |
