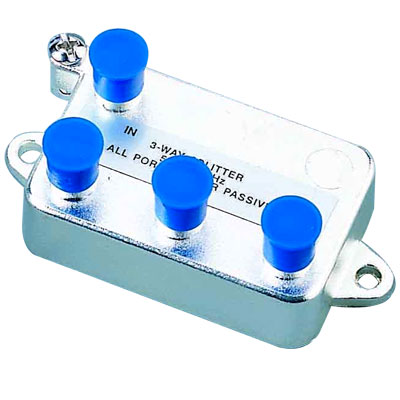

SAT Splitter
Product Description
l 8212PV/DC : 3-way
l 8412PV/DC : 3-way
l 8212PV : 3-way Splitter – All ports Power Pass 5-2050MHz
l 8412PV : 3-way Splitter – All ports Power Pass 5-2450MHz
Frequency (MHz) | Insertion Loss IN-OUT (Max. dB) | Return Loss IN (Min. dB) | Return Loss OUT (Min. dB) | Isolation OUT-OUT (Min. dB) |
5-47 | 11.5 | 8.0 | 5.0 | 13.0 |
47-1000 | 11.5 | 8.0 | 10.0 | 18.0 |
1000-2050 | 11.5 | 10.0 | 10.0 | 18.0 |
2050-2150 | 11.5 | 8.0 | 8.0 | 18.0 |
2150-2300 | 11.5 | 8.0 | 8.0 | 18.0 |
2300-2450 | 12.0 | 8.0 | 8.0 | 18.0 |
